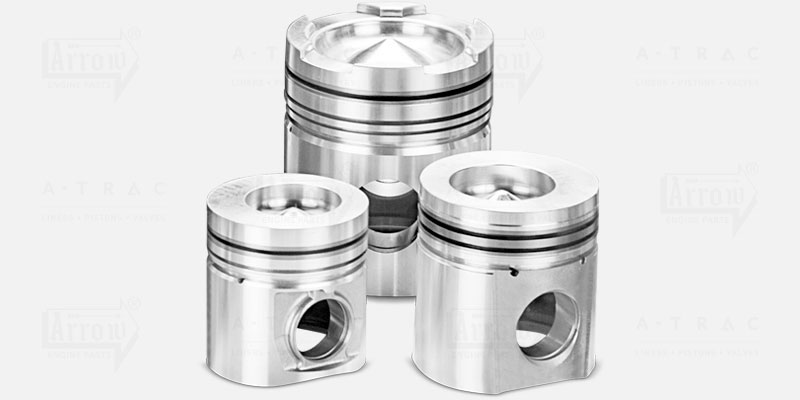

Pistons

Atrac Pistons are manufactured using high strength alloys and employing advanced manufacturing techniques to provide flawless quality which is entirely significant to boost the performance of an engine. The high conductivity of these materials promotes cool running and optimum performance and the light but robust design ensures efficient operation over extended periods of time. Resistance to wear ring grooves, skins and gudgeon pin hole is greatly increased to ensure dimensional stability in service. All alloy piston castings are correctly heat treated and aged for maximum strength and durability.

Being a leading manufacturer and exporter of Pistons in India, we specialize in manufacturing these pistons in custom designs and dimensions to meet the specifications and demands of our customers across the World. All our Pistons are made with strict adherence to international standards and can be used as OEM replacements across a wide range of vehicles.

Product Range

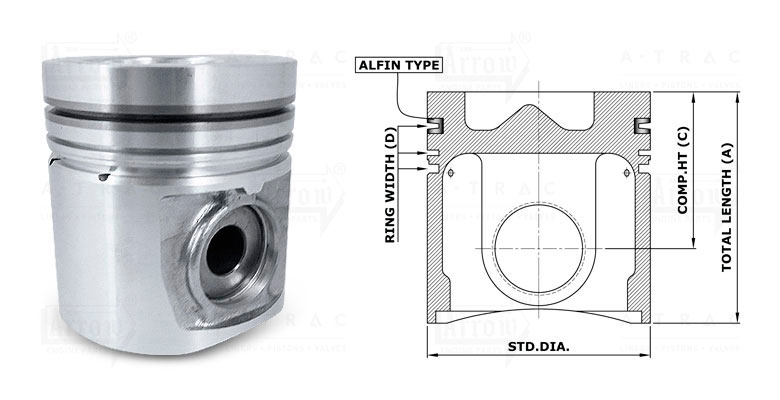

Alfin Type

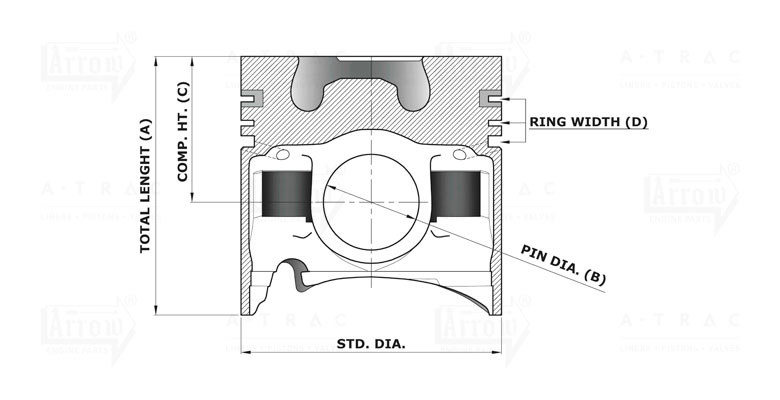

Steel Strip Type

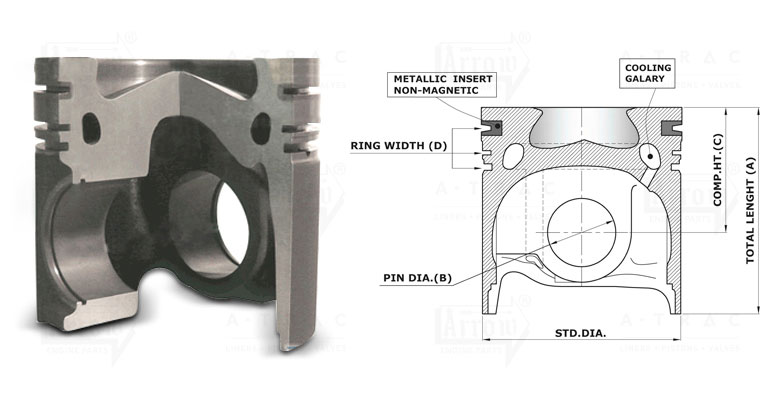

Cooling Gallery

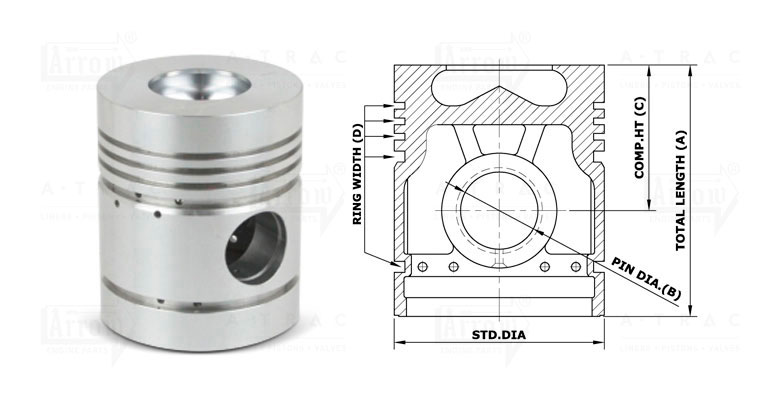

Normal Piston

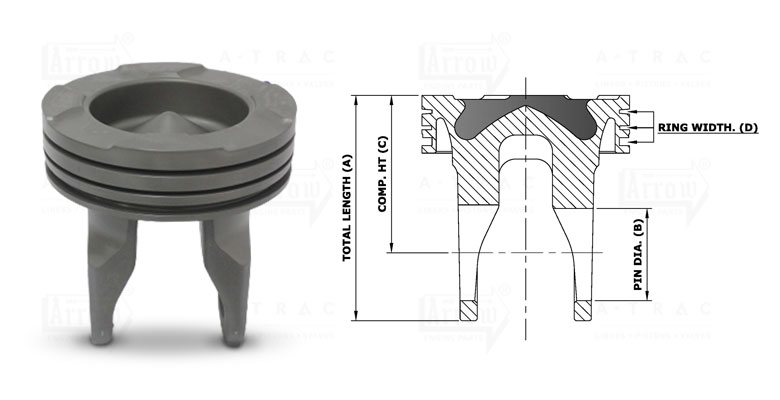

Articulated Piston


Production Capacity

0.6 million pieces per annum

Material

Aluminium

Hardness (HRB)

70

Chemical Composition

NameMinimumMaximum
Copper (Cu)1.001.50
Magnesium (Mg)1.001.50
Silicon (Si)12.0014.00
Manganese (Mn)-Max. 0.20
Aluminium (Al)Rem.

Other than above, we can offer material compositions using Iron, Nickel, Zink, Lead, Tin, Titanium or as per customer specifications meeting to international standards.

Size Range (In mm)

Standard Diameter

39.00 to 222.25

Atrac Pistons Catalogue

Request a Full Catalogue

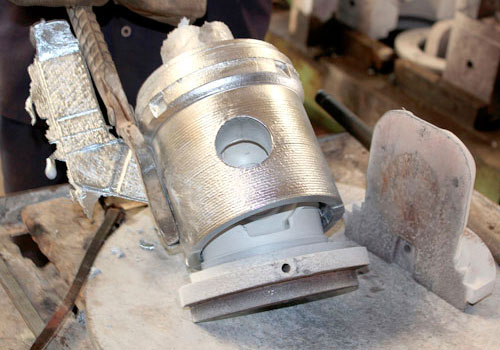

Pistons Manufacturing Facilities

Pistons Manufacturing Facilities

Applications

ACMEDAEWOOIFAMANSAMOFA
AIREODAFIMTMASSEY FERGUSON \PERKINSSAVIEM
AJITDAVID BROWNINTERNATIONAL (IHC)MAZ/KRAZSCANIA
ANDORIADEMAGISUZUMAZDASENDLING
ARMSTRONG SIDDELEYDETROITJEMMERCEDESSIFENG
ARROWDEUTZJENBACHMITSUBISHISLAVIA
ASAADONGFENGJIANG DONGMOBYLETTESTIHL
ASIADORMANJIANMENNAVISTARSUZUKI
ATLAS COPCOEICHERJOHN DEERENISSAN/DATSUN.TATA
AVIAEKMKAMAZOPELTOYOTA
B.M.CFIATKAWASAKIPETTERURSUS TRACTOR
BAJAJFIAT IVECOKIAPEUGEOTV.M.ENGINE
BEDFORDFORDKIRLOSKARPIVAVALMET TRACTOR
BERLIETFORTANKNORR-BREMSR.V.I.VALTRA
BERNARDFORTSCHRITT TRACTORKOHLERRENAULTVAZ
BLACKSTONEGARDNERKOMATSUROBINVESPA
BOLINDER MUNKTELLGELFRED COMPRESSORKRONHOUTROBSONVOLKSWAGEN
BRIGGS STRATTONGMCKUBOTAROCKETVOLVO
BUKHGONGDONGLEYLANDROTEXWABCO
CADILLACHATZLIAZRUMANIAWESTINGHOUSE
CHAI HAIHELWANLISTERRUSSIANYAMAHA
CHANGCHAIHERCULES MOTORLOMBARDINIRUSSIAN BELARUSYANMAR
COMETHINDUSTANMACKRUSTONZETOR
CUMMINSHINOMADSAMCO
DAE DONGHONDAMAHINDRASAME

FAQs

For pistons, the minimum order quantity is 500 pieces.
